Flanges
Flanges are mechanical components used to connect pipes, valves, pumps, and other equipment to form a piping system. They provide easy access for inspection, cleaning, and modification of the system. Flanges are typically used in applications involving high pressure, temperature, or corrosive environments.

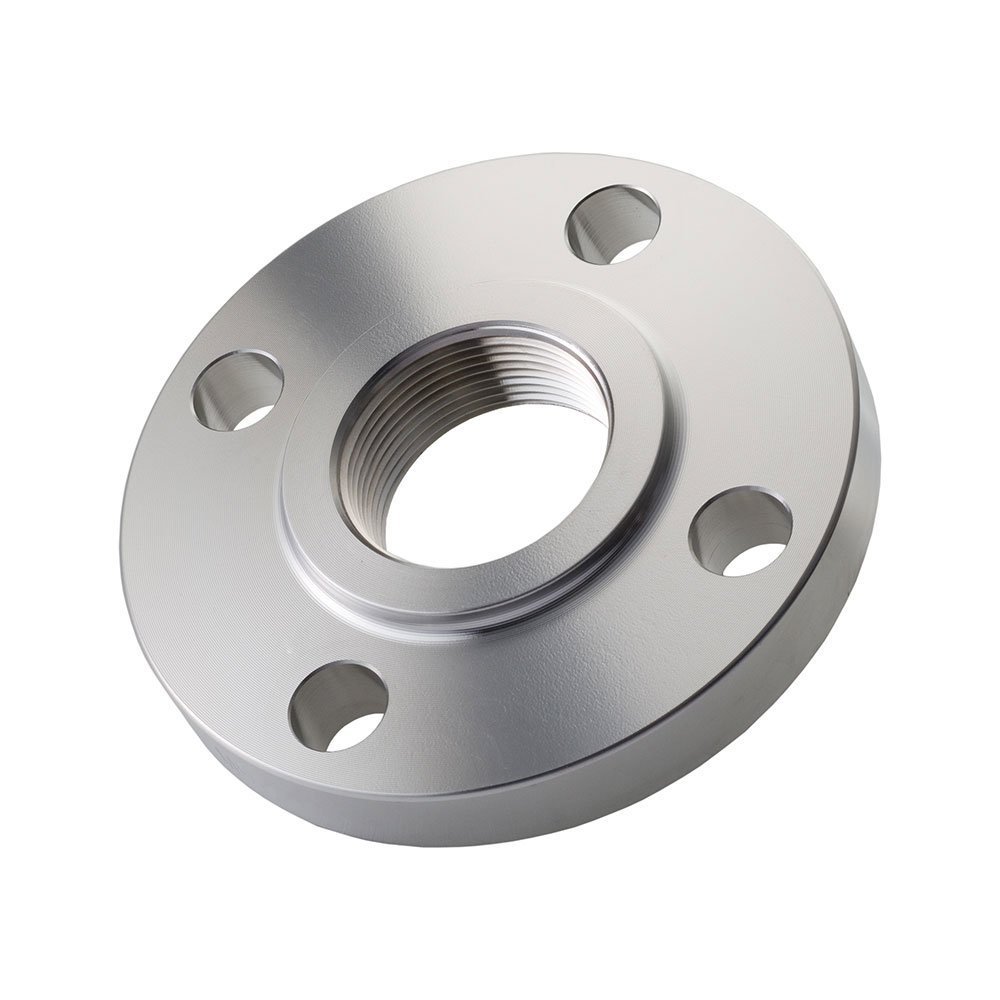

Stainless & Duplex Steel
| Category | Details |
|---|---|
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Stainless Steel |
ASTM / ASME SA 182 F: 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347H |
| Duplex Steel | ASTM / ASME SA 182 F: 44, F45, F51, F53, F55, F60, F61 |
Carbon & Alloy Steel
| Category | Details |
|---|---|
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Carbon Steel |
ASTM / ASME A 105, ASTM / ASME A 350 LF2 |
| Alloy Steel | ASTM / ASME A 182 GR: F5, F9, F11, F12, F22, F91 |
Nickel & Copper Alloy
| Category | Details |
|---|---|
| Range |
15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400 |
| Form |
Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss |
| Nickel Alloy |
ASTM / ASME SB 564: UNS 2200 (Nickel 200), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276) ASTM / ASME SB 160: UNS 2201 (Nickel 201) ASTM / ASME SB 472: UNS 8020 (Alloy 20 / 20 CB 3) |
| Copper Alloy |
ASTM / ASME SB 61: UNS C92200 ASTM / ASME SB 62: UNS C83600 ASTM / ASME SB 151: UNS 70600, 71500, C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30) ASTM / ASME SB 152: UNS C10100, C10200, C10300, C10800, C12000, C12200 |

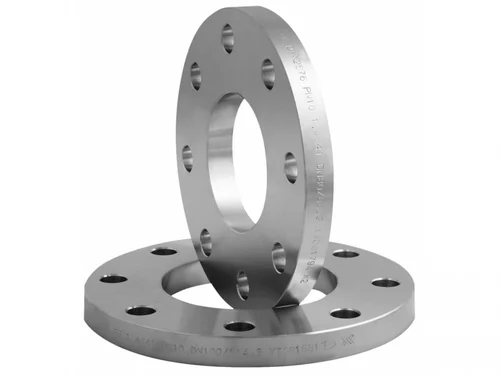

Hastelloy
| Category | Details |
|---|---|
| Grades | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 |
| Size | 1/2"NB to 12"NB |
| Standard | ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish |
Inconel
| Category | Details |
|---|---|
| Grades |
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 |
| Size | 1/2 inch - 48 inch (15mm - 1200mm) |
| Standard | ANSI/ASME B16.5, ANSI B16.47, API, DIN, JIS, BS |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Excellent finish |

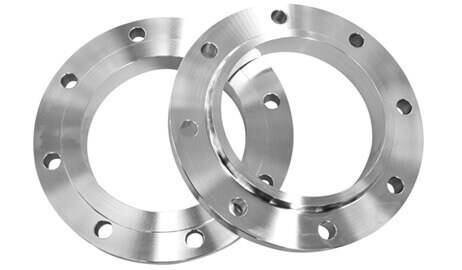

Monel
| Category | Details |
|---|---|
| Grades | Monel 400, Monel K500 |
| Range | 1/2" NB to 60" NB |
| Types |
Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| Features |
Durability Corrosion resistance Dimensional accuracy High strength Chemical resistance Excellent finish |
Titanium
| Category | Details |
|---|---|
| Material | Titanium |
| Grade | Gr2, Gr5, Gr7, Gr9 |
| Standards | DIN, ASTM, BS |
| Application | Bicycles, Motors, Chemicals |
| Strength |
Superior Quality, Fast Delivery, Competitive Price, Humanized After-Sales Service |
| Features |
Low Density Rustless Good Antiwear Property High Strength |
| Size | Set the size according to the customers' requirements |
